The Surphaser 3D scanner 100HSX is the best in its class. It’s the only spherical laser scanner that holds sub-millimeter accuracy on large-object scans over 35 feet. It’s our go-to scanner for the majority of projects 4 feet and larger. We utilize the short-range configuration (SR_100) for automotive scanning, rivet-level aerospace scanning, aircraft interiors, design and inspection. The longer-range configuration (IR_100HQ) is great for capturing full-size aircraft, large tooling, boats, buildings and a large array of aerospace applications.
Surphaser 3D scanner offers unique benefits to its user:
- High speed scanning, while maintain high accuracy
- Ranges from 1 meter up to 130 meter
- Ultra-low noise –- sub-millimeter accuracy for all models
- Light and portable –- fits in a carry-on case approved for cabin luggage
- Robust -- temperature, dust and splash-resistant
- Export point clouds for Polyworks, DesignX, Geomagic Wrap, SpatialAnalyer and more
- Automatic target extraction and target-based scan registration
- Automatic color image mapping to point cloud
- Operate from Apple, Android or Microsoft tablet device or cell phone
- Optional built-in PC and removable battery
- Optional camera system with 60-megapixel equivalent color image

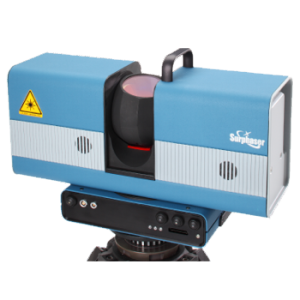

Surphaser 3D Laser Scanner
Surphaser 100HSX Configuration Options:
| Configuration | SR_100 | IR_100HQ | 50HS | 105HQ4 | 105HS4 |
|---|---|---|---|---|---|
| Recommended Work Range (m) | 1-7 | 1-35 | 1.5-100 | 1-110 | 1-130 |
| Ambiguity Range (m) | 90 | 90 | 180 | 180 | 180 |
| Angular Uncertainty, arc sec | 15 | 15 | 15 | 15 | 15 |
| Range Noise mm, 90% reflectivity | 0.024@4m | 0.07@10m | 0.25@10m | 0.05@10m | 0.16@10m |
| Range Noise mm, 10% reflectivity | 0.088@4m | 0.41@10m | 0.6@10m | 0.21@10m | 0.49@10m |
| Range Uncertainty, mm | <0.3@3m | <0.35@5m | <0.7@15m | <0.7@15m | <0.7@15m |
