Zeiss T-SCAN Hawk 2
- Handheld Metrology-grade lightweight 3D Scanner
- Class 2 (eye-safe) lasers
- Two integrated 5MPix cameras
- Hyper Scale one shot infield calibration
- Satellite mode photogrametery, with scale bars for parts over 1m
- 10m ultra light USB-C cable
- Multiple blue laser crosses for high-speed scanning
- Single blue laser for deep pockets
- Flexible depth of field for more detailed scanning
- Volumetric accuracy: 0.02mm + 0.015mm/m
- Runs directly in ZEISS Quality Suite / GOM Inspect

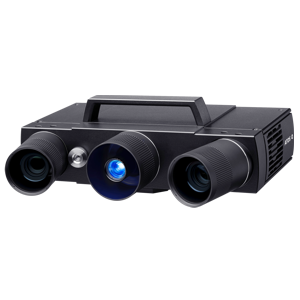

Zeiss GOM ATOS Q
- 8/12 million pixel blue light 3D scanner
- 5 measurement volumes: 100, 170, 270, 350, 500
- Point distance [mm]: 0.03 - 0.15
- Accuracy [mm]: 0.007 - 0.026
- 10m fiber optic cable
-
Compact dimension: 340 mm x 240 mm x 83 mm; weighs less than 4kg
- Under 1 second scan capture time
- Fully automated operation using the GOM ScanCobot or the ATOS ScanBox 4105
- Runs directly in ZEISS Quality Suite / GOM Inspect

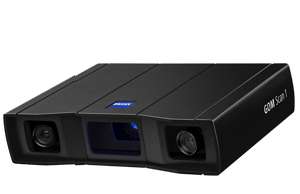

Zeiss GOM SCAN 1
- 6 million pixel blue light 3D scanner
- 3 measurement volumes: 100, 200, 400
- Point distance [mm]: 0.037, 0.060, 0.129
- 5m USB-3 cable
-
Compact dimension: 290 mm x 215 mm x 80 mm; weighs 2.5kg
- Under 1 second scan capture time
- Runs directly in ZEISS Quality Suite / GOM Inspect
